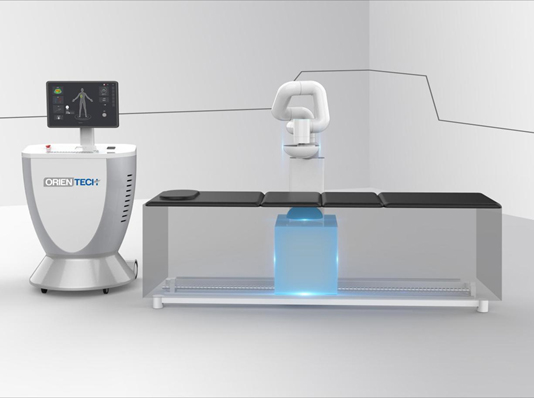

W2102

Indications
  • Deep regional tumor in pleural cavity, abdominal cavity and pelvic cavity or benign diseases

Contraindications
  • Patients with pacemaker cannot receive treatment or stay near to the device.
  • Severe cardiovascular and cerebrovascular diseases
  • Epilepsy;
  • Fever, cachexia or people with tendency of massive hemorrhage;
  • Sensitive sites such as eyeballs and testis;
  • Metal materials in focal region。
  • Heart area of patients with hypertension and heart disease.
  • Abdomen of pregnant patients
  • Nervous damage poor thermal sensitivity in treating area




Technical parameters
Supply Voltage a.c.220v±22v, 50Hz±1Hz
Working Frequency 27Mhz±0.4Mhz
Timing Device The computer can set up time according to treatment and then automatically shut down& alarm.
Rated Output Power 0-800w continuously adjustable
Input Power ≤ 2KVA
Output Waveform Uniform amplitude continuous sine wave
Continuous Working Hours At least 4 hours
Environmental Condition Ambient temperature 0-40℃, relative humidity less than 80%
